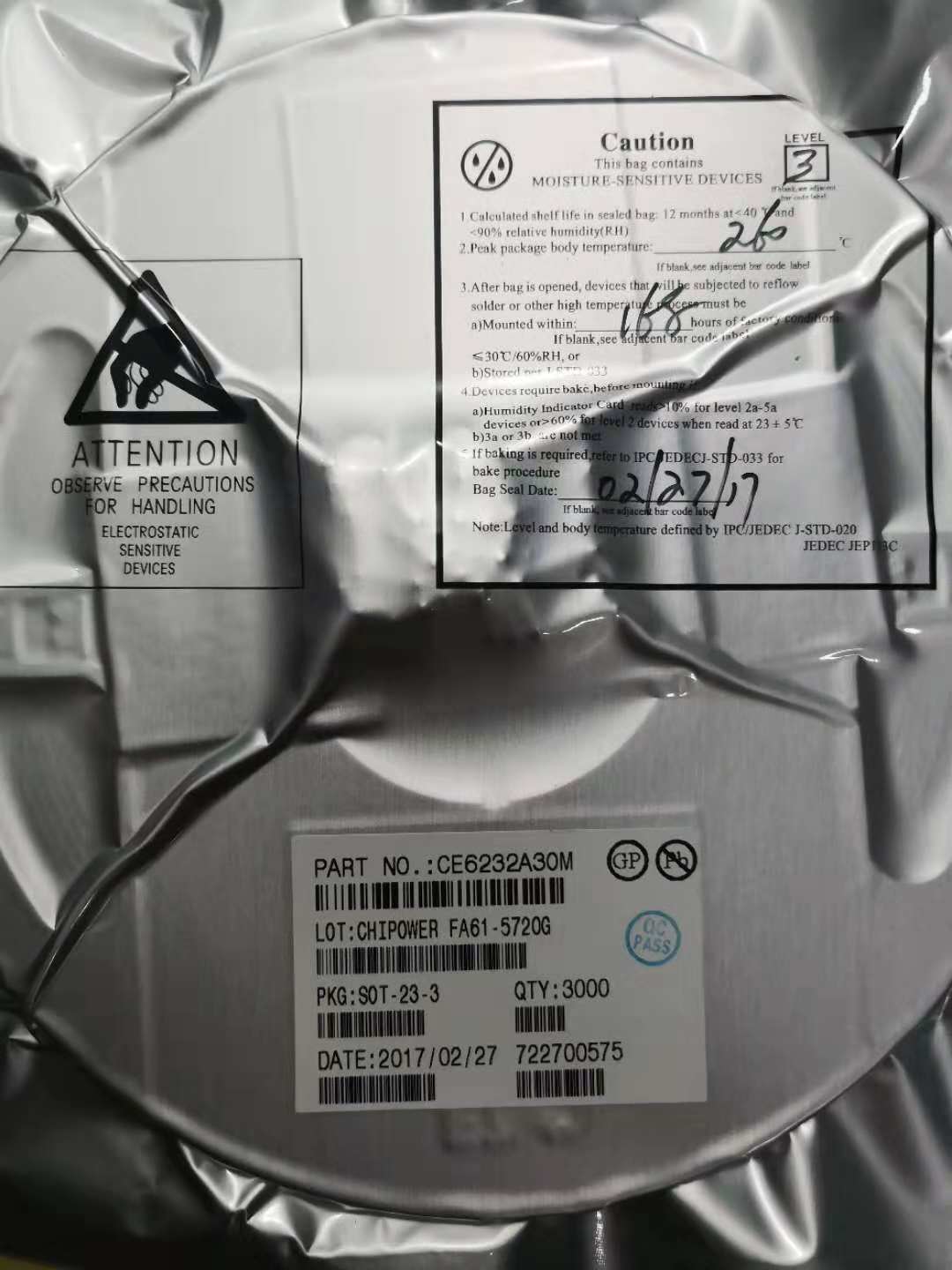

CE6232A30M
The CE6232 series are a group of positive voltage regulators manufactured by CMOS technologies with ultra low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small
产品介绍
Low Quiescent Current: 0.8μA
Operating Voltage Range: 1.8V～8V
Output Current: 300mA
Low Dropout Voltage： 110mV@100mA(VOUT=3.3V)
Output Voltage: 1.2~ 5.0V
High Accuracy: ±2％/±1％（Typ.）
High Power Supply Rejection Ratio: 50dB@1kHz
Low Output Noise: 27xVOUT μVRMS (10Hz~100kHz)
Excellent Line and Load Transient Response
Built-in Current Limiter, Short-Circuit Protection
