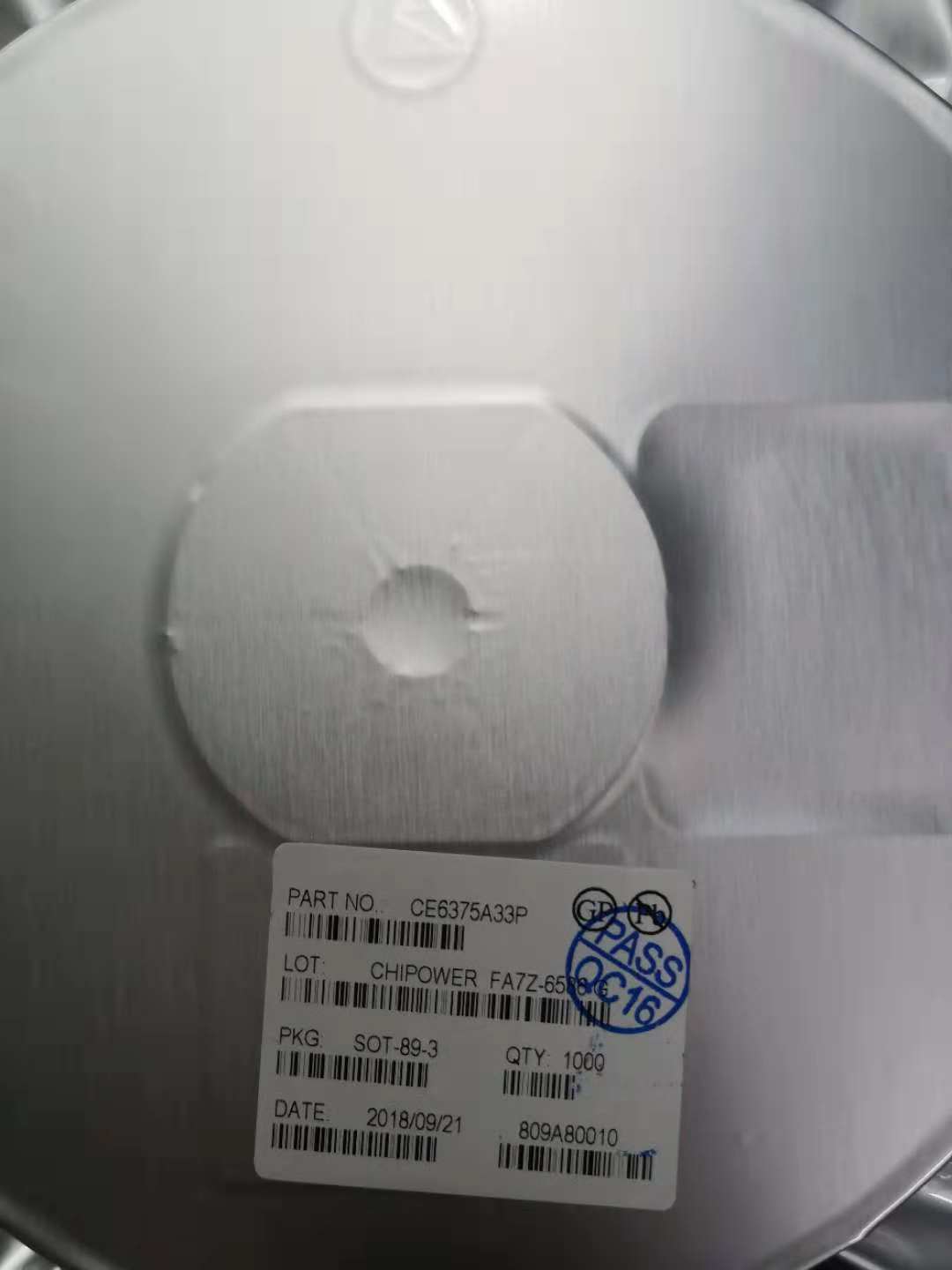

CE6375A33P
The CE6375 series are a group of positive voltage regulators manufactured by CMOS technologies with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small.
Low Quiescent Current: 2μA ＆#61548;
Operating Voltage Range: 2.5V～36V ＆#61548;
Output Current: 250mA ＆#61548;
Low Dropout Voltage： 400mV@100mA(VOUT=3.3V) ＆#61548;
Output Voltage: 2.1~ 12V ＆#61548;
High Accuracy: ±2%/±1%(Typ.) ＆#61548;
High Power Supply Rejection Ratio: 70dB@1kHz ＆#61548;
Low Output Noise: 27xVOUT μVRMS(10Hz~100kHz) ＆#61548;
Excellent Line and Load Transient Response ＆#61548;
Built-in Current Limiter, Short-Circuit Protection
Over-Temperature Protection ＆#61548;
Stable with Ceramic or Tantalum Capacitor
